Description

HJC 3G Specially made for High TDS water.

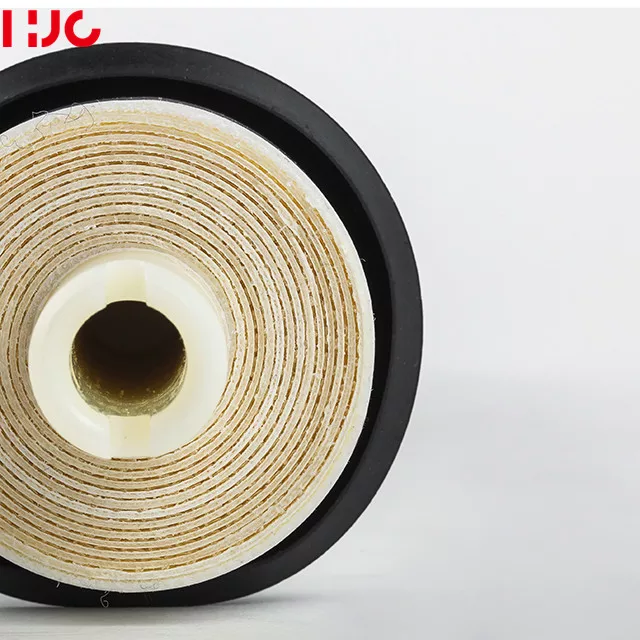

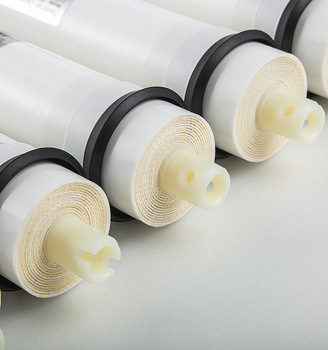

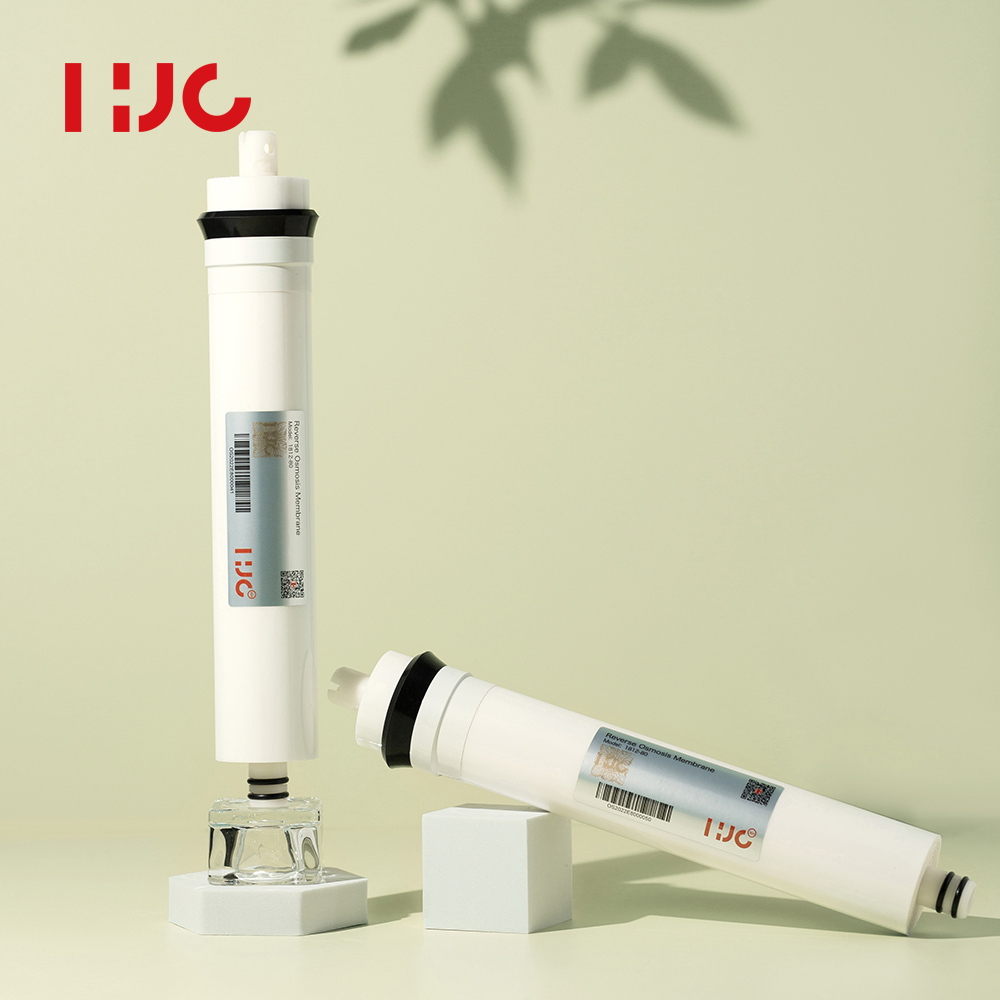

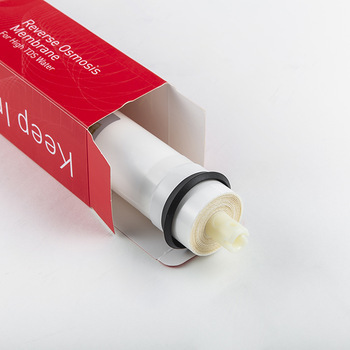

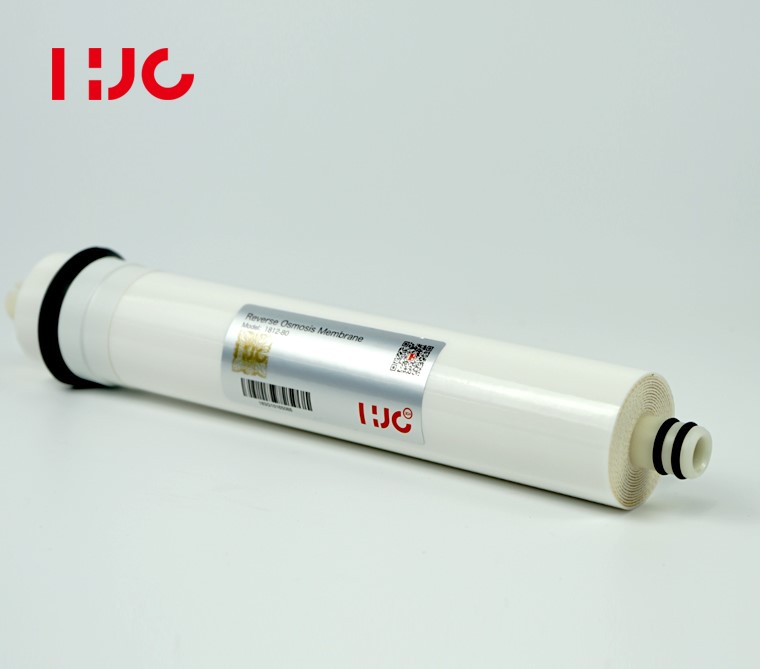

Membrane Element 3G 1812-80

Performance: Permeate Flow: 80 gpd

Salt Rejection: 98%

Type Configuration: Spiral Wound Membrane

Polymer: Composite Polyamide

Membrane Active Area: 0.728m2

Application Data*

Maximum Applied Pressure: 300PSI(2.06MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113° F ( 45°c)

PH Range, Continuous (Cleaning): 2-12(3-10)

Maximum Feed Water TDS 4,500ppm

Maximum Feed Silt Density Index SDI 5

* The limitations shown here are for general use.

For specific projects, operating at more conservative values may ensure the best performance and longest life of the membrane.

Test Conditions

The stated performance is initial (data taken after 30 minutes of operation), based on the following conditions:

200 mg/L NaCl solution

60 psi (0.41 MPa) Applied Pressure

77 F (25 c) Operating Temperature

15% Permeate Recovery

6.5-7.0 pH Range.
